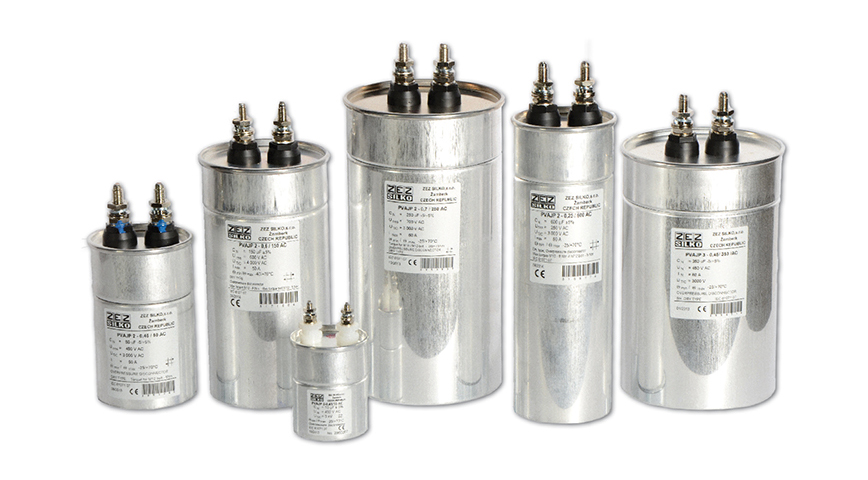

AC Филтриращи Кондензатори - еднофазни

Всички AC филтриращи кондензатори можете да намерите в каталози

Type	Rated voltage AC rms U_rms [V]	Rated voltage AC U_N [V]	Capacitance C_N [µF]	Current I_N [A]	Dimensions [mm]
PVAJP 2-0,25/200 AC	250	350	200	35	85 x 135
PVAJP 2-0,25/300 AC	250	350	300	50	85x200
PVAJP 2-0,25/400 AC	250	350	400	50	85x200
PVAJP 2-0,25/500 AC	250	350	500	50	85x261
PVAJP 2-0,25/600 AC	250	350	600	50	85 x 261
PVAJP 2-0,3/30 AC	300	425	30	40	85x145
PVAJP 2-0,3/50 AC	300	425	50	40	85x145
PVAJP 2-0,3/70 AC	300	425	70	40	85x145
PVAJP 2-0,33/120AC	330	460	120	25	85x115
PVAJP 2-0,33/150AC	330	460	150	30	85x150
PVAJP 2-0,33/200AC	330	460	200	40	85x150
PVAJP 2-0,33/300AC	330	460	300	50	85x220
PVAJP 2-0,33/400AC	330	460	400	50	85x261
PVAJP 2-0,33/500AC	330	460	500	65	110x220
PVAJP 2-0,42/47AC	420	600	47	60	85x145
PVAJP 2-0,45/10 AC	450	640	10	40	65 x 85
PVAJP 2-0,45/50 AC	450	640	50	50	85x145
PVAJP 2-0,45/100 AC	450	640	100	60	85x145
PVAJP 2-0,45/200 AC	450	640	200	60	85x220
PVAJP 2-0,45/300 AC	450	640	300	50	110x220
PVAJP 2-0,45/500 AC	450	640	500	80	136 x 220

Type	Rated voltage AC rms U_rms [V]	Rated voltage AC U_N [V]	Capacitance C_N [µF]	Current I_N [A]	Dimensions [mm]
PVAJP 2-0,48/100 AC	480	680	100	43	85x220
PVAJP 2-0,48/200 AC	480	680	200	55	110x220
PVAJP 2-0,48/300 AC	480	680	300	65	110x261
PVAJP 2-0,48/400 AC	480	680	400	65	110x261
PVAJP 2-0,5/47 AC	500	710	47	50	85x145
PVAJP 2-0,5/68 AC	500	710	68	50	110x145
PVAJP 2-0,5/100 AC	500	710	100	60	85x220
PVAJP 2-0,5/400 AC	500	710	400	60	136x220
PVAJP 2-0,53/100 AC	530	750	100	60	85x220
PVAJP 2-0,53/220 AC	530	750	220	80	110x220
PVAJP 2-0,6/68 AC	600	850	68	40	85x175
PVAJP 2-0,6/100 AC	600	850	100	40	85x220
PVAJP 2-0,6/150 AC	600	850	150	50	110x220
PVAJP 2-0,72/53 AC	720	1020	53	80	85x220
PVAJP 2-0,72/68 AC	720	1020	68	80	110x185
PVAJP 2-0,78/33 AC	780	1100	33	50	85x150
PVAJP 2-0,78/68 AC	780	1100	68	60	110x220
PVAJP 2-0,85/33 AC	850	1200	33	50	85x200
PVAJP 2-0,85/44 AC	850	1200	44	50	85x220
PVAJP 2-0,85/120 AC	850	1200	120	60	136x220

Type	Rated voltage AC rms U_rms [V]	Rated voltage AC U_N [V]	Capacitance C_N [µF]	Current I_N [A]	Dimensions [mm]
PVAJP 2-0,96/16 AC	960	1360	16	50	85x145
PVAJP 2-0,96/90 AC	960	1360	90	60	110x261
PVAJP 2-0,99/30 AC	990	1400	30	40	85x200
PVAJP 10-1,2/10 AC	1200	1700	10	50	85x145
PVAJP 10-1,2/16 AC	1200	1700	16	60	85x165
PNAJP 20-2,5/4 AC	2500	3535	4	40	110x165
